iConnect Till Control Enhancements

iConnect Till Control Enhancements


Overview

In version 5200 of the iConnect suite, we have introduced several enhancements, including improved UI/UX functionality. This document outlines these changes to minimize confusion and ensure the effective use of all updates.

Enhancements

  1. An additional pane has been added to the left-hand side, displaying all venues within the business. This enables filtering of tills by venue. A count of iCell and API tills has also been added next to each venue name, displayed in brackets.
    1. A search bar has been added, enabling users to search by venue

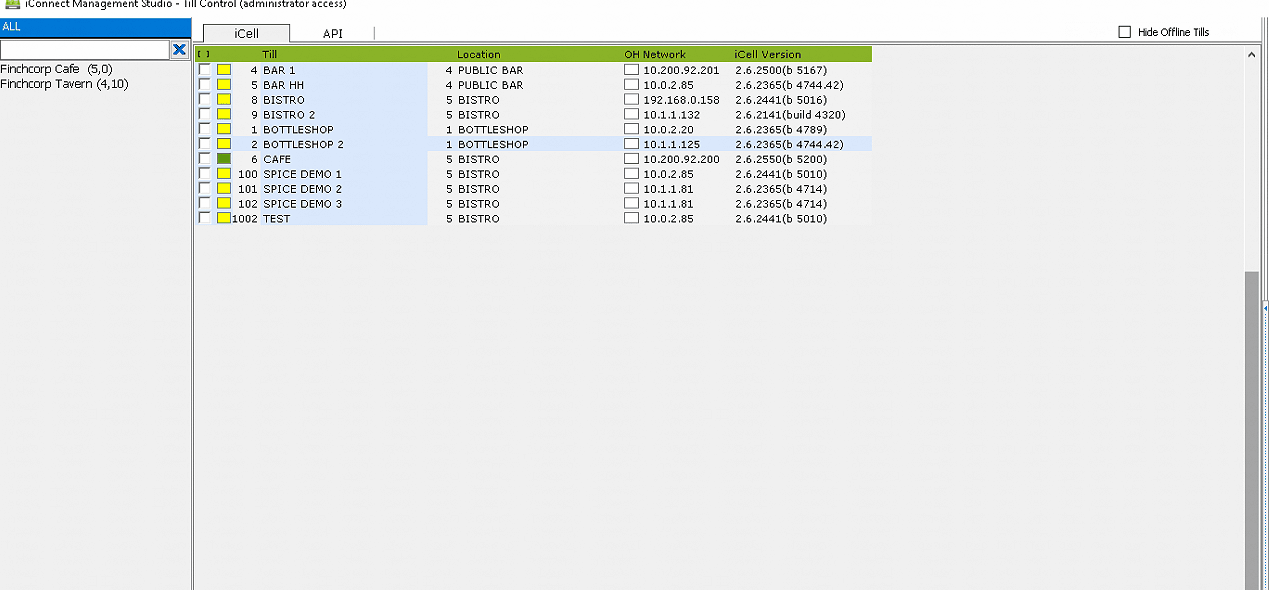

    2. An "All" button has been included at the top, allowing users to list all tills within the business, maintaining the old view when required

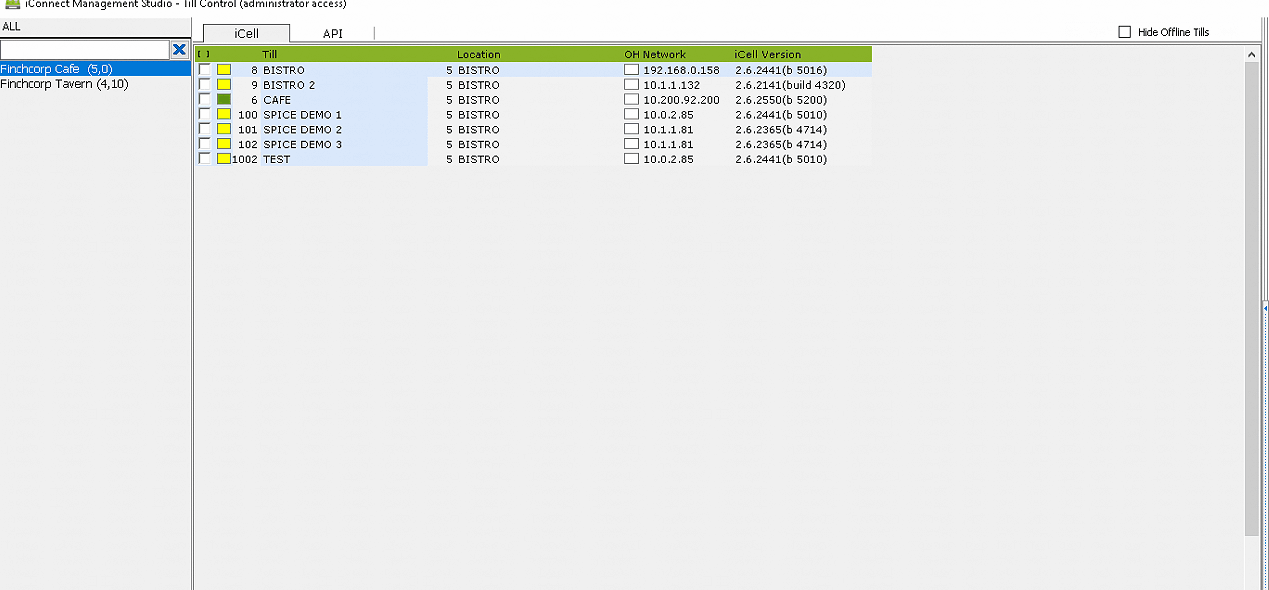

Gif showing additional pane to filter tills by venues













  1. An additional filter, "Hide Offline Tills," which will hide all offline tills on screen has been added. This hides both iCell and API tills.
Gif showing 'Hide Offline Tills' functionality













  1. Removed the 'Machine ID' to allow for additional room in the program

Bug Fixes

  1. Improved the speed of all commands in the right click popup menu for customers who have a large list of tills. For Example, Select all, selecting by venue or by location.  This process should be almost instantaneous now.
  2. Adding a till will now add it to the till list immediately instead of requiring a program restart
  3. Fixed an issue where clicking on another till while in the process of adding a till would cause an error.
